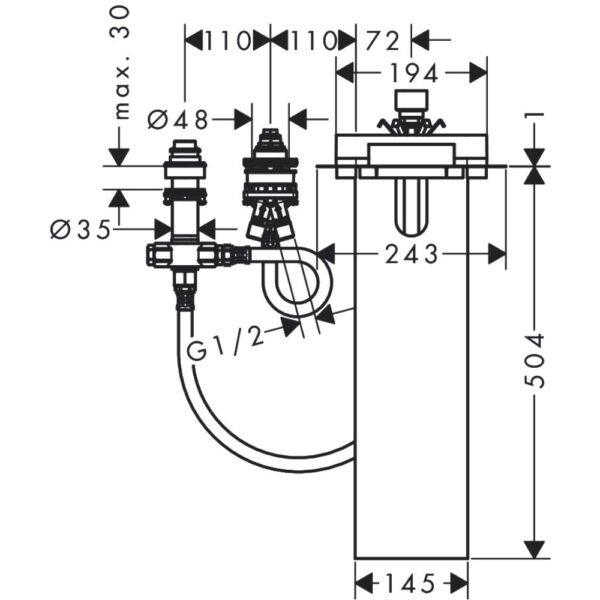

Upgrade your bath with the Hansgrohe Basic Set for 3-Hole Rim Mounted Single Lever Bath Mixer. This comprehensive set includes an sBox for quiet, smooth, and protected hose guidance. The drilling diameter required is 35mm for one hole and 50mm for the other. The clamping range is 0-30mm. The hand shower offers a maximum pull-out length of 1.45m, ensuring flexibility during use. Suitable for installation on a bath rim with a width of at least 100mm. Designed for operating pressures ranging from 1 to 10 bar, with a ? connection thread and a connection hose length of 600mm. Two drilled holes with diameters of ? 50/51mm on the bath tub are required for installation, with connection by sawing out also necessary. Easy to install and use, with images provided for illustration.
- Clamping range: 0 – 30 mm
- Operating pressure: min. 1 bar/max. 10 bar
- Easy to use and install
- sBox for quiet, smooth and protected hose guidance
- pictures are shown for illustration purposes
- Connection hose length: 600 mm
- Drilling diameter on bath tub: two drilled holes ? 50/51 mm and connection by sawing out required
- suitable for installation on bath rim
- Drilling diameter: 35 mm, 50 mm
- Connection thread: 1/2″
- bath rim width at least 100 mm
- Maximum pull-out length of hand shower: 1.45 m
