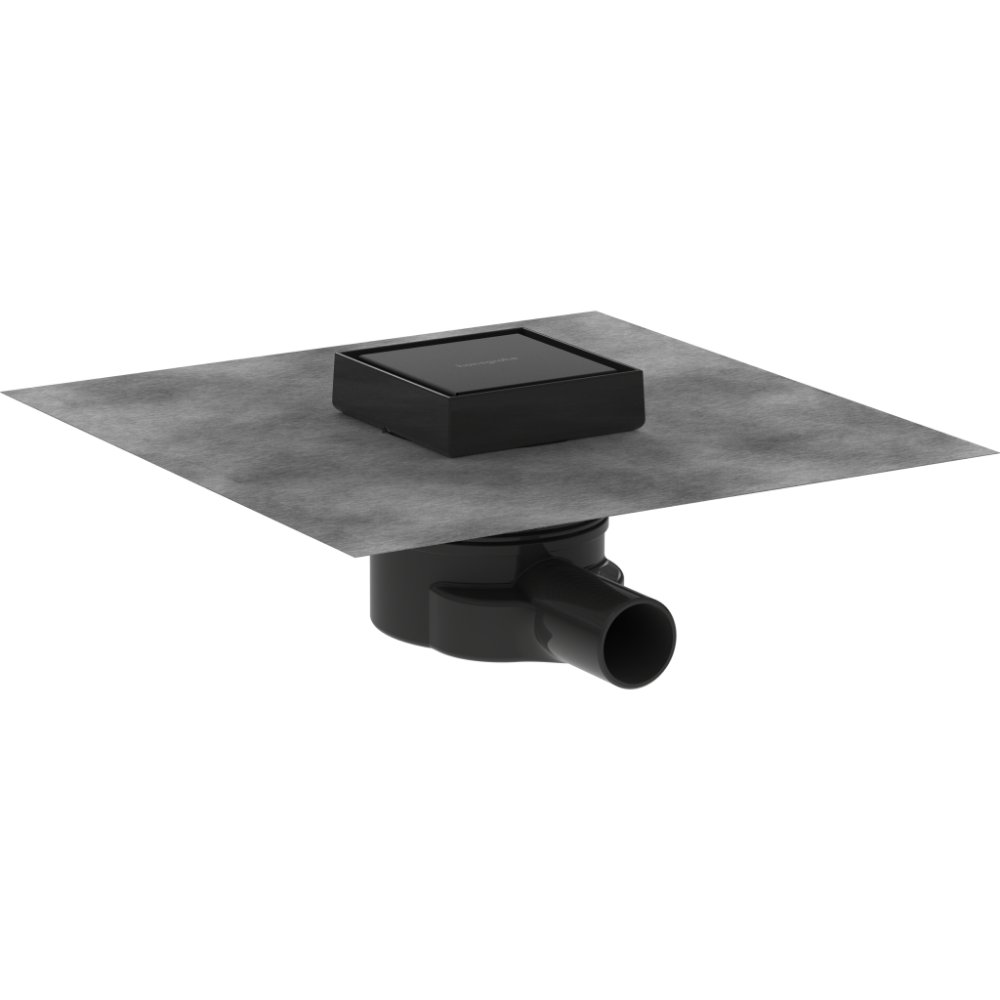

Introducing the Hansgrohe Raindrain Point Shower Drain Collection, a modern solution for your bathroom. This set includes a point drain, installation set, pre-assembled sealing membrane, base set, siphon, and screed protection cover. With a stainless steel 304 grate, it’s durable and easy to clean. Tileable on the backside, suitable for tile thicknesses up to 18mm, and featuring a rotatable and adjustable siphon body. Available in Matt Black and Brushed Stainless Steel finishes, it offers up to 41 l/min drainage capacity and is ideal for both new constructions and renovations.
- Modern Style
- Collection: Raindrain Point
- pre-assembled sealing membrane
- grate material: Stainless Steel 304 (1.4301)
- Brand: Hansgrohe
- Consists of: point drain, installation set, pre-assembled sealing membrane, base set, siphon, screed protection cover
- tileable on the back side
- water seal: up to max. 50mm
- up to 41 l/min drainage capacity
- Application area: new construction, renovation
- height adjustable by 10mm
- tile thickness: up to 18mm
- direction of outlet: horizontal
- connection diameter: DN40
- removable water seal
- easy to clean surface
- rotatable and adjustable siphon body
- with removable hair strainer
- easy to clean siphon
- grate removal tool allows easy removal of the finish set
- material siphon: ABS
- type of odour seal: fluid
- minimal installation height 54mm
- suitable for primary drainage
- mounting type: free in the floor
- simplified installation due to the cutable siphon
- Images shown are for illustration purpose only
