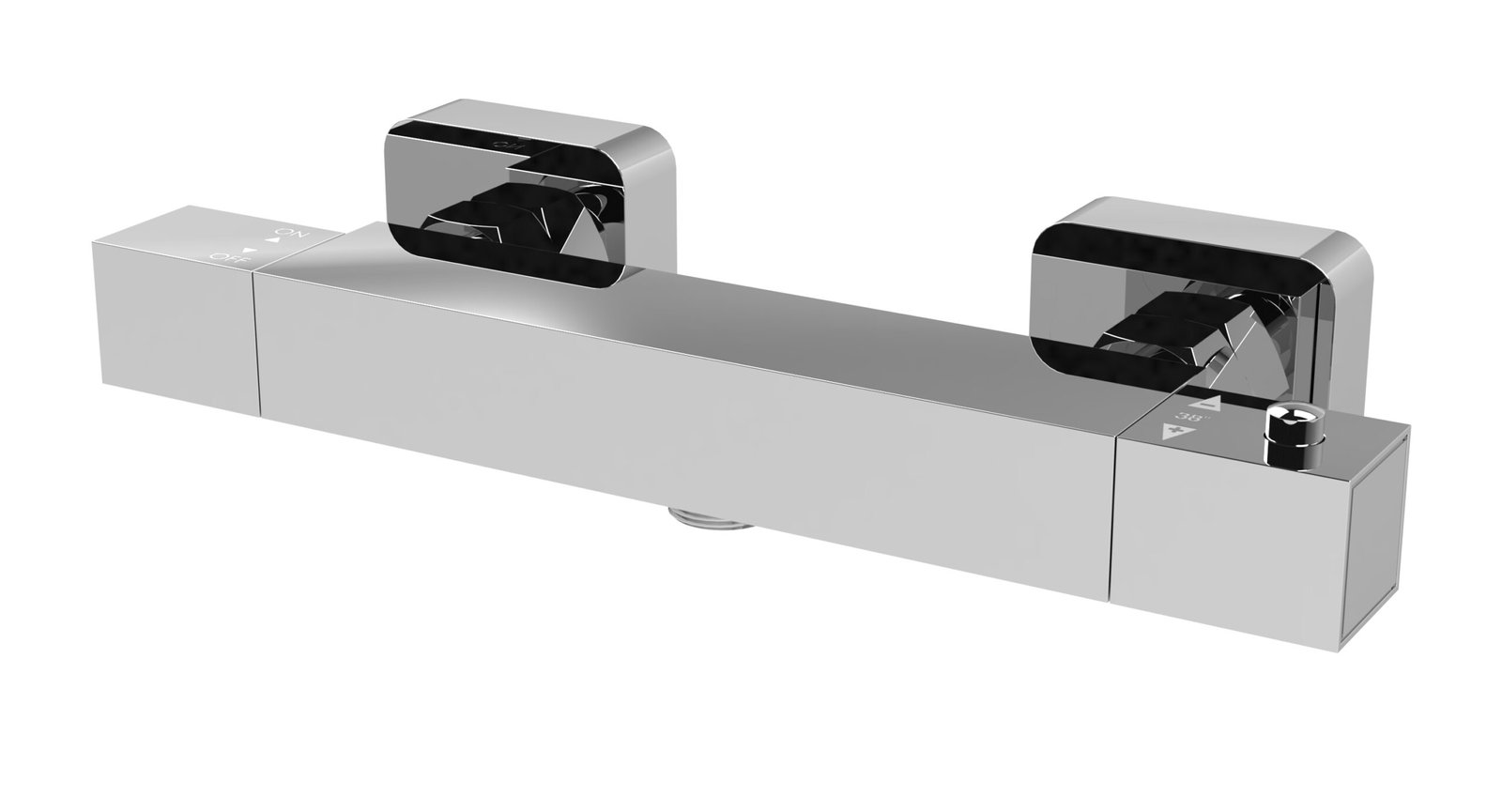

Nuie Square thermostatic bar shower valve – VBS025
- Thermostatically controlled
- Bottom outlet
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- Manufactured from high quality brass & ABS
- 5 Year manufacturers Warranty
- Flow Rate 0.1Bar l/m / 4
- Flow Rate 0.5Bar l/m / 9
- Flow Rate 1Bar l/m / 14
- Flow Rate 2Bar l/m / 21
- Flow Rate 3Bar l/m / 26
- Handset Included / No
- Head Included / No
- Operating Pressure / 0.5
- Outlet Elbow Included / No

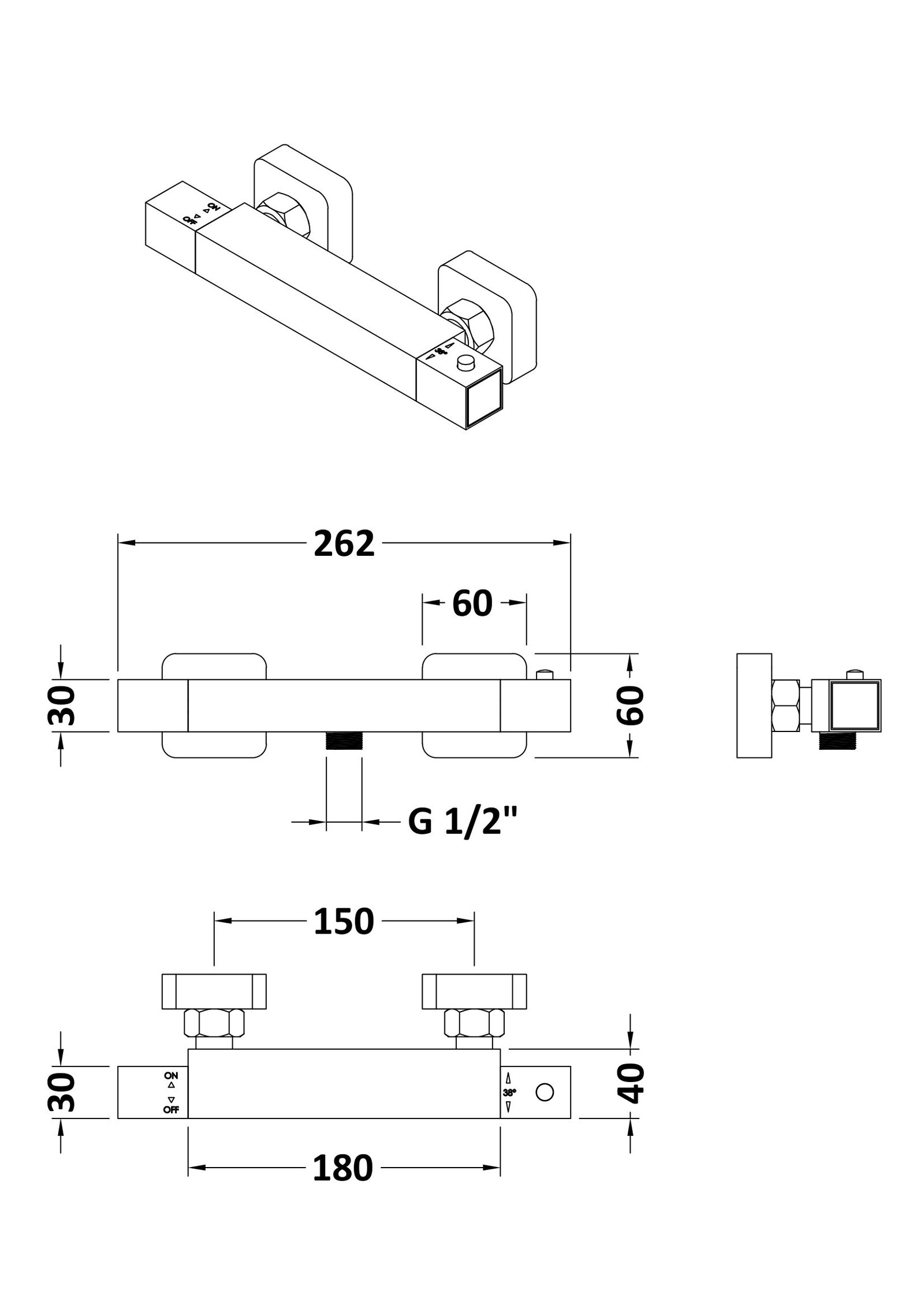

- Pipe Centres / 150 MM
- Pipe Size / 15 mm
- Product Depth / 40mm
- Product Height / 32mm
- Product Width / 257mm
- Shower Valve Style Shape / Bar Valve
- Stain Rust Resistant / Yes
- TMV2 Approved / No
- TMV3 Approved / No
- Valve Handle Included / Yes
- Valve Handle Type/Shape / Square Handle
- Valve Included / Yes
- Valve/Cartridge Type / 1/4 Turn Ceramic Disc
- WRAS Approved / NO
