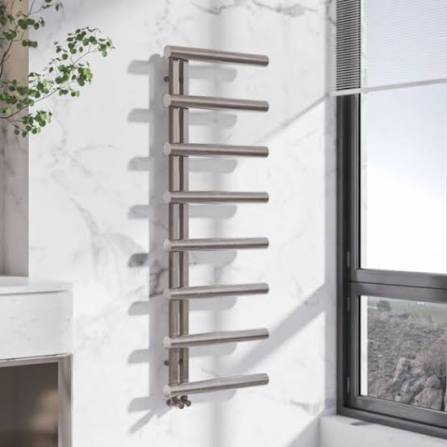

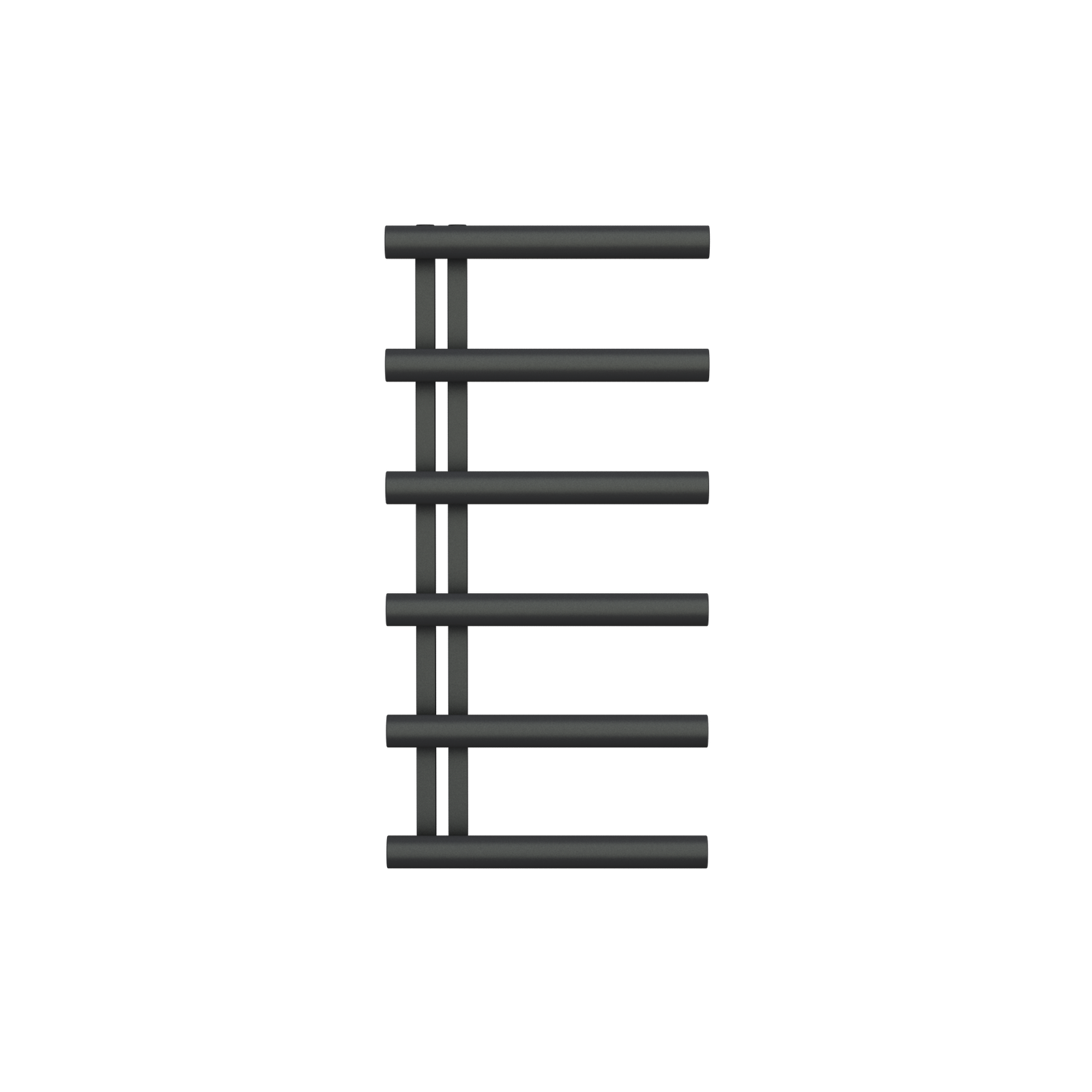

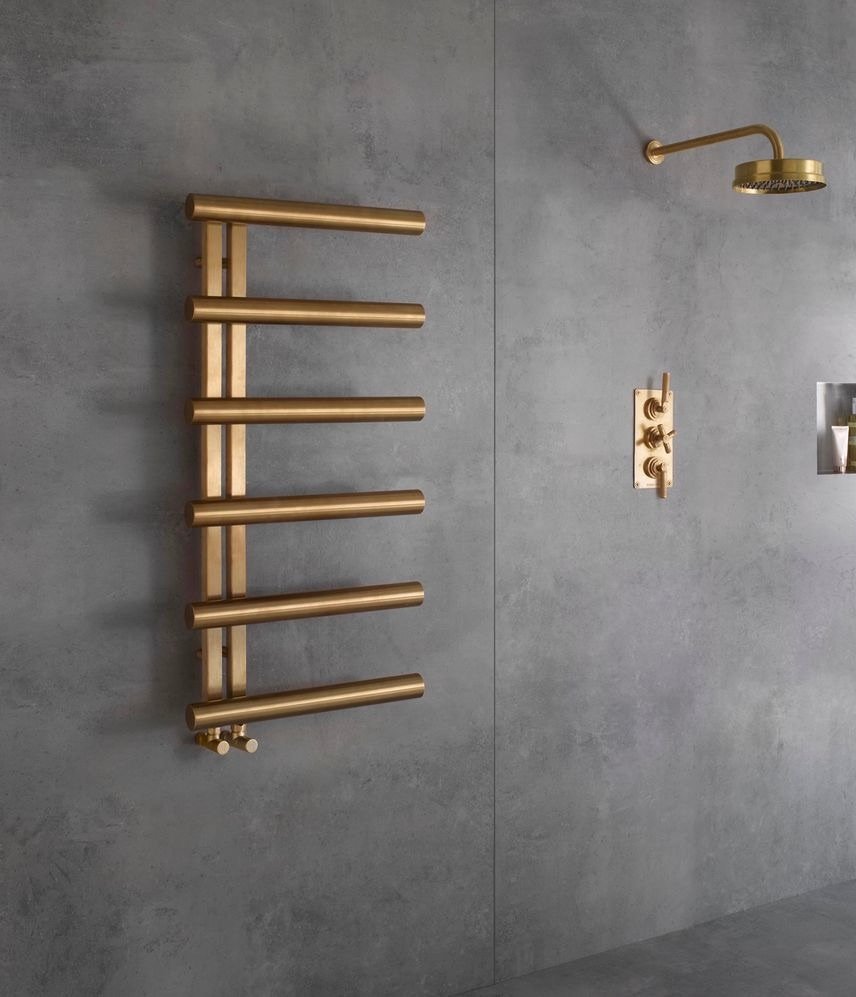

Zehnder Chime Radiators – Timeless Elegance with Practical Warmth
The Zehnder Chime radiator range is a striking towel radiator from Zehnder’s Studio Collection that combines bold, elegant design with strong performance. Designed with curved, round tubes and polished stainless steel, it features open sides so even thick towels can easily be slid on or hung to dry. Available in multiple finishes such as Volcanic, Brushed Bronze, Brushed Brass, Brushed Black Chrome, Stainless Steel Mirror and Stainless Steel Brushed Mirror. It can be run on central heating, electric, or dual fuel, and it’s built so the open side of the rails can be installed either to the left or the right for flexibility.
- Brand: Zehnder
- Collection: Chime
- Style: Modern
- Guarantee: 5 Years
- Mounting: Wall
- Material: Steel
- Fuel Type: Central Heating, Dual Energy
- Suitable for domestic water supply
- Tubes can be installed to the left or right
- Delivery times: 3-5 Working Days
- Easy to install and use
- Images are shown for illustration purposes only
- Radiator Valves are not included
| SKU | Size(Height x Width) | WattsΔT50K | WattsΔT30K | BTUsΔT50K | BTUsΔT30K | Orientation | Water Content Litres | Pipe Centers (From Wall) |
| CHZ100500336 | 1000mm X 500mm | 382 | 204 | 1303 | 696 | Vertical | 6.00 litres | 55-80mm |
| CHZ10050CF | 1000mm X 500mm | 382 | 204 | 1303 | 696 | Vertical | 6.00 litres | 55-80mm |
| CHZ10050N213 | 1000mm X 500mm | 276 | 141 | 942 | 481 | Vertical | 6.00 litres | 55-80mm |
| CHZ10050N209 | 1000mm X 500mm | 276 | 141 | 942 | 481 | Vertical | 6.00 litres | 55-80mm |
| CHZ10050N211 | 1000mm X 500mm | 276 | 141 | 942 | 481 | Vertical | 6.00 litres | 55-80mm |
| CHZ100509516 | 1000mm X 500mm | 382 | 204 | 1303 | 696 | Vertical | 6.00 litres | 55-80mm |
| CHZ100509517 | 1000mm X 500mm | 382 | 204 | 1303 | 696 | Vertical | 6.00 litres | 55-80mm |
| CHZ140500336 | 1380mm X 500mm | 518 | 272 | 1767 | 928 | Vertical | 6.70 litres | 55-80mm |
| CHZ14050CF | 1380mm X 500mm | 518 | 272 | 1767 | 928 | Vertical | 6.70 litres | 55-80mm |
| CHZ14050N213 | 1380mm X 500mm | 377 | 204 | 1286 | 696 | Vertical | 6.70 litres | 55-80mm |
| CHZ14050N209 | 1380mm X 500mm | 377 | 204 | 1286 | 696 | Vertical | 6.70 litres | 55-80mm |
| CHZ14050N211 | 1380mm X 500mm | 377 | 204 | 1286 | 696 | Vertical | 6.70 litres | 55-80mm |
| CHZ140509516 | 1380mm X 500mm | 518 | 272 | 1767 | 928 | Vertical | 6.70 litres | 55-80mm |
| CHZ140509517 | 1380mm X 500mm | 518 | 272 | 1767 | 928 | Vertical | 6.70 litres | 55-80mm |
| CHZ180500336 | 1760mm X 500mm | 643 | 341 | 2194 | 1164 | Vertical | 8.20 litres | 55-80mm |
| CHZ18050CF | 1760mm X 500mm | 643 | 341 | 2194 | 1164 | Vertical | 8.20 litres | 55-80mm |
| CHZ180509516 | 1760mm X 500mm | 643 | 341 | 2194 | 1164 | Vertical | 8.20 litres | 55-80mm |
| CHZ180509517 | 1760mm X 500mm | 643 | 341 | 2194 | 1164 | Vertical | 8.20 litres | 55-80mm |
